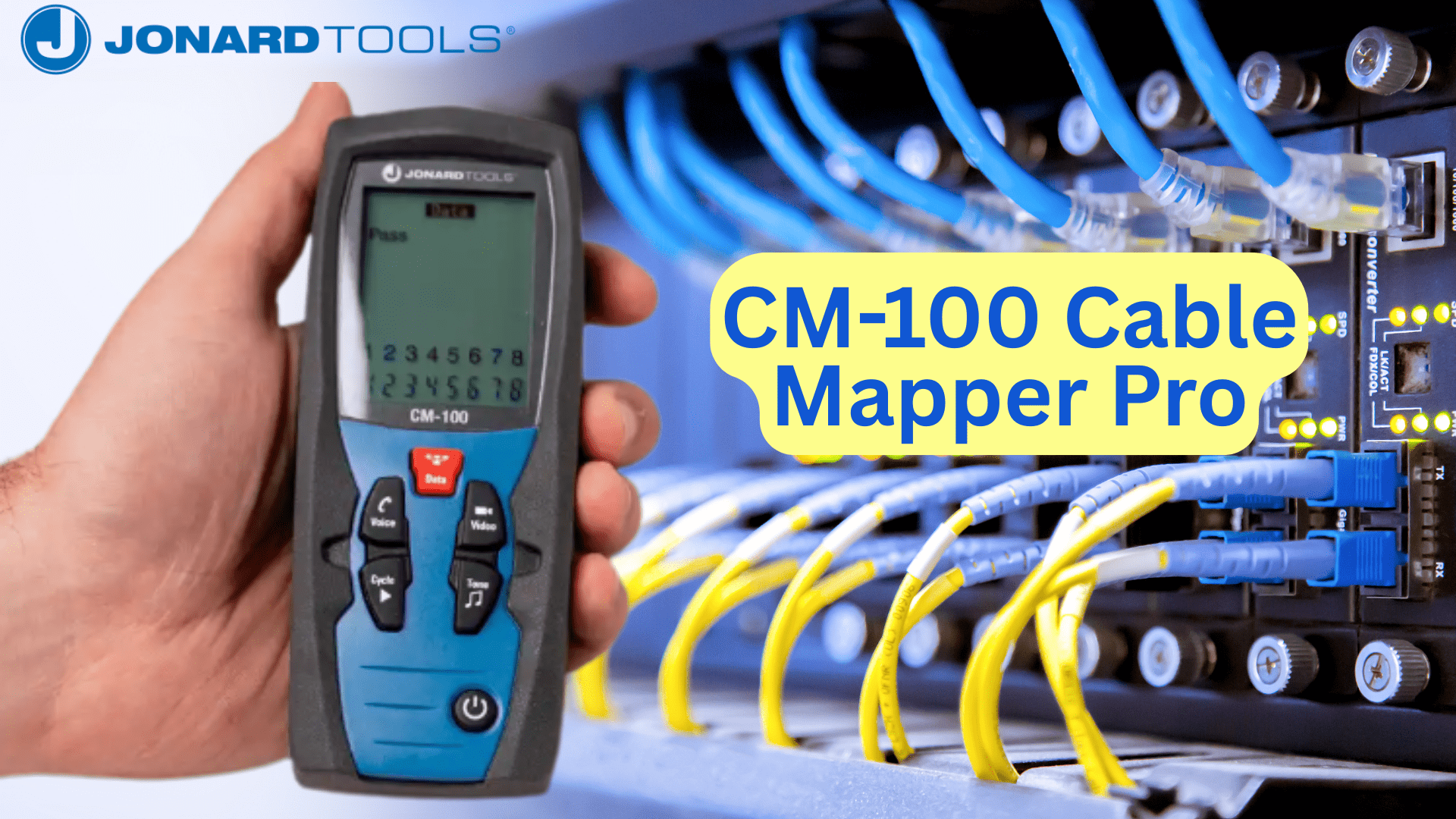

In IP video installations, the quality of your cabling can make or break the job. Miswired, damaged, or mislabeled cables cause unnecessary delays, system failures, and unhappy customers. For security dealers and integrators working with IP cameras, PoE switches, and networked devices, the ability to accurately map and test cabling is essential. That’s exactly what the Jonard Tools CM-100 Cable Mapper Pro delivers — and it does it fast.
Built specifically for low-voltage professionals, the CM-100 is a high-performance cable tester that identifies and maps up to eight cables at once. It’s designed to work with coaxial (F-connector), data (RJ45), and voice (RJ11) cables, making it the perfect fit for video surveillance, access control, and any other application where clean, labeled wiring matters.
What the CM-100 Cable Mapper Pro Does
The CM-100 goes far beyond basic continuity testing. It provides a comprehensive analysis of your cable runs, helping you avoid wasted time and costly callbacks. Core functions include:
-
Mapping up to 8 cable drops using numbered ID remotes
-
Identifying opens, shorts, miswires, split pairs, and reversals
-
Displaying cable length and distance-to-fault measurements
-
Generating tone signals for cable tracing with an analog probe
-
Backlit LCD screen with clear visual feedback
-
Compact, rugged design that stands up to field use
With the ability to test voice, data, and video cables from one tool, the CM-100 eliminates the need to carry separate testers or rely on trial-and-error diagnostics in the field.
How Security Dealers Use the CM-100
The CM-100 Cable Mapper Pro is a powerful tool for every stage of your project:
-
Pre-wire testing: Validate that new cable runs are correctly terminated and connected before you install cameras or recorders.
-
Service and maintenance: Quickly locate which cable run is causing signal issues or IP connectivity loss.
-
Retrofit jobs: When taking over existing systems or upgrading legacy analog equipment to IP, use the CM-100 to verify which cables are usable and which need to be replaced.
-
Labeling and documentation: Use the eight ID remotes to map, label, and document each cable drop — a professional touch that makes future service easier.
This is especially useful when deploying Digital Watchdog cameras, Blackjack servers, CDVI access control panels, or any product requiring PoE and a clean network connection.
Why It Matters for IP Video Installs
In a world of plug-and-play promises, real-world IP video systems still demand careful wiring and documentation. A camera that fails to power up may be due to poor terminations, too long of a cable run, or reversed pairs. Without a tool like the CM-100, diagnosing those issues can take hours — or worse, require a second site visit.
By confirming wiring integrity on the spot, you ensure:
-
Fewer technical support calls
-
Faster project completion times
-
Cleaner installations with fewer errors
-
Greater trust from customers
Security dealers who work with distributors like ADI, Wesco, or SES can use the CM-100 to build a reputation for doing the job right the first time.
Compatible with Your Workflow
The CM-100 is designed to fit seamlessly into your existing workflow. It’s battery-powered, portable, and easy to operate. Whether you’re using a ladder, lift, or working in tight network closets, it’s small enough to carry in your tool bag — and rugged enough to survive the job site.
Available Now from Southeast Security Products
Southeast Security Products is proud to represent Jonard Tools in the Southeast U.S. The CM-100 Cable Mapper Pro is one of our top tool recommendations for dealers working in IP video, network cabling, or access control.
To get pricing or request a demo, contact your local SESP representative. We’ll help you add the CM-100 to your lineup so you can start saving time and money on your next job.
Professional cable mapping starts here — with the Jonard Tools CM-100.
For full product specifications, visit Jonard Tools CM-100 product page.
