Simplify Cable Management with the 75-inch Cable Trench System

Jul 7, 2025 | Datacom

75-inch Cable Trench System in-wall cable routing solution

Cut the Core Drilling: SDC WPT Wireless Power Transfer Device Makes Retrofits Easy

Messing with door cores is one of the biggest headaches for security dealers retrofitting electrified hardware—especially when dealing with wood or fire-rated doors. Fortunately, the SDC WPT Wireless Power Transfer Device solves that problem by delivering power and data across the door gap without any moving parts, wires, or core drilling.

Ideal for both retrofit and new construction, this RF-powered solution simplifies installations, minimizes vandal-prone wiring, and keeps projects on schedule. Whether you’re updating an older access control system or installing electric locks on a wood or steel door, the SDC WPT gives you the power—literally—to get the job done cleanly and compliantly.

Key Product Features

  • Wireless RF power transfer—no door core drilling required
  • Compatible with steel and wood doors
  • Transfers both energy and data (REX, DPS, latch status)
  • Visual LED status indicator
  • Field-selectable dual voltage output (12VDC or 24VDC)
  • Up to 1/4” (7mm) door gap tolerance
  • Flexible mounting on latch, hinge, or top frame
  • No moving parts or exposed wires—zero wear points
  • Adjustable unlock trigger (1–90 seconds)
  • Includes fixed 4-second unlock trigger for standard REX

Use Cases & Dealer Benefits

The WPT is a retrofit-friendly, code-compliant solution designed for:

  • Failsecure Electrified Locks and Latches: Power mortise, cylindrical, or rim locks without wiring hassles.
  • High-Traffic Doors: Reduce wear and tear from wire loops and moving parts.
  • Historic and Finished Doors: Maintain door aesthetics without compromising functionality.
  • Healthcare and Schools: Perfect for touchless entry installations using wave-to-open sensors.
  • Compliance Upgrades: Ideal for projects needing to meet UL fire and burglary ratings.

Why Dealers Love It:

  • No Core Drilling = Faster Installs: Save labor and avoid damaging fire-rated or wood doors.
  • Reduced Callbacks: No wires to break or degrade over time.
  • More Tolerant Alignment: Easier to install than inductive wireless devices.
  • Upsell Opportunity: Bundle with electrified locksets, exit devices, and wave-to-open switches.
  • Profitable Retrofits: Unlock more margin on existing door openings where wiring is difficult.

Technical Summary

  • Power Input (Frame Side): 600 mA @ 24 VDC
  • Power Output (Door Side):
    • 600 mA @ 12 VDC
    • 300 mA @ 24 VDC
  • Door Gap Tolerance: Up to 1/4″ (7mm)
  • Alignment Tolerance: Horizontal & vertical < 5/64” (2mm)
  • Dry Inputs:
    • (1) 4-second fixed unlock trigger
    • (1) 1–90 second adjustable unlock timer
  • Dry Outputs (Frame Side):
    • (2) SPDT, 1A @ 30 VDC resistive
    • (2) SPST-NO, 100 mA @ 60 VDC resistive
  • Environmental Rating: -4°F to 140°F
  • Weight: 1 lb
  • Certifications:
    • UL 10C Positive Pressure Fire Tests
    • UL 1034 Burglary-Resistant Locking Mechanisms

Note: For use with failsecure (power-to-unlock) locks only. Not compatible with failsafe or continuously dogged locks.

How the SDC WPT Works

Unlike inductive systems that require precise coil alignment, the WPT uses RF energy, which:

  • Transmits power as radio waves across the door gap.
  • Converts the RF signal into usable DC voltage via an internal receiver.
  • Transfers data (REX, DPS, latch status) along with power.
  • Is less sensitive to vertical and horizontal misalignment than coil-based systems.

This makes the WPT more installer-friendly and reliable in real-world deployments—especially in field conditions where perfect alignment isn’t always possible.

Accessory Highlight: WPT Drill Jig

For installers working with solid or particle-filled wood doors, SDC offers a WPT Drill Jig Assembly (part #SDC-WPT), available from JustDoorToolz. This makes prep quick, clean, and precise—ensuring a secure, code-compliant fit for every install.

Partner with SESP for Your SDC Installations
Southeast Security Products represents SDC and other best-in-class manufacturers across the Southeast U.S., offering hands-on support, product expertise, and dealer-focused programs to help you grow your business. Whether you’re building your first smart home package, upgrading to next-gen connectivity, or integrating high-performance technology into a larger security system, we can help you select the right solutions to power your installations. Contact us today for pricing, training, or to request a demo of the WPT Wireless Power Transfer Device.

Visit sesproducts.com or reach out to learn more about how we can support your next project.

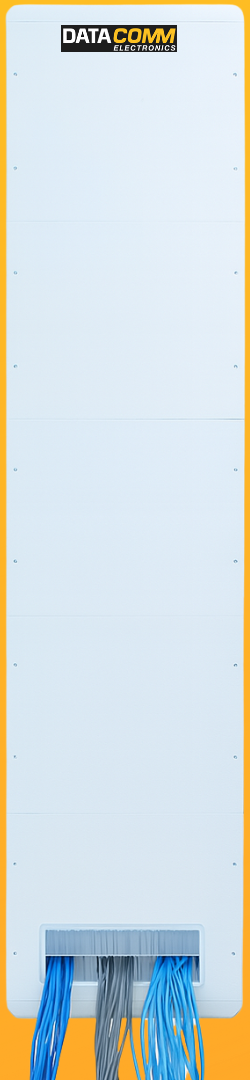

75-inch Cable Trench System

The 75-inch Cable Trench System from DataComm Electronics is a purpose-built, in-wall cable channel designed to route low-voltage wiring cleanly and discreetly between studs during new construction or remodeling. Unlike surface-mounted raceways or messy conduit solutions, this structured wiring system installs within the wall cavity, creating a concealed pathway for AV, data, and power cables—ideal for high-end residential and commercial applications.

When it comes to wall-mounted TVs, digital signage, smart boards, or network devices, integrators are often faced with the challenge of getting cables from point A to point B without leaving visible wiring. The 75-inch Cable Trench System solves this problem by providing a durable, UL-listed channel that spans standard 16″ stud bays, giving dealers a dedicated path for clean cable management behind the drywall. It’s the ideal solution for AV professionals, low-voltage dealers, and structured wiring specialists who want to maintain both performance and aesthetics.

Key Product Features

  • In-wall channel installs horizontally between 16″ wall studs

  • 75-inch pre-configured length with one built-in exit point

  • Durable ABS plastic protects low-voltage cabling inside wall cavities

  • Pre-formed exit location allows for easy termination to wall plates or devices

  • Trimmable design for jobsite flexibility and custom applications

  • UL-listed for safety in low-voltage installations

  • Seamless integration with DataComm’s Pro-Power kits and pass-through wall plates

  • Ideal for AV, data, control, and structured cabling installs

  • Engineered to support future upgrades and maintenance access

Use Cases & Dealer Benefits

The 75-inch Cable Trench System is engineered for structured cabling applications where a clean, finished look is just as important as reliable signal delivery. Dealers and integrators will find it especially useful in the following situations:

  • Home Theater & Residential AV: Conceal HDMI, speaker wire, or IR repeater cables between displays and AV cabinets without any exposed cords.

  • Conference Rooms & Boardrooms: Run data, control, and power lines between wall-mounted screens and rack-mounted equipment in a polished, professional way.

  • Educational & Commercial Spaces: Deliver structured cabling across long wall spans in classrooms, lecture halls, or signage installations without drilling through multiple studs.

  • Smart Home Integration: Route automation, surveillance, and AV wiring between devices and panels within open-plan layouts.

For dealers, this product offers a high-margin, easy-to-install solution that can be added to nearly any structured wiring package. It simplifies planning, supports a clean finish, and adds long-term value to the installation. Since it’s part of the larger DataComm ecosystem, it works seamlessly with other recessed wall plates and cable management accessories, making it an easy upsell and an excellent standardization tool across projects.

Technical Summary

  • Length: 75 inches

  • Material: High-impact ABS plastic

  • Mounting: Horizontal installation between studs during rough-in phase

  • Exit Point: Single side port for cable handoff to device or plate

  • Compatibility: Structured cabling, AV, networking, and low-voltage power

  • Certifications: UL-listed for low-voltage use

  • Customization: Easily trimmed to fit shorter stud spans

  • Color: Neutral white (concealed after wall finishing)

  • Accessories: Optimized for use with DataComm’s Pro-Power kits, pass-through plates, and recessed solutions

With its thoughtful design and code-compliant construction, the 75-inch Cable Trench System helps integrators streamline installations and deliver exceptional results on every job.

Partner with SESP for Your DataComm Electronics Installations

Southeast Security Products represents DataComm Electronics and other best-in-class manufacturers across the Southeast U.S., offering hands-on support, product expertise, and dealer-focused programs to help you grow your business. Whether you’re building your first smart home package, upgrading to next-gen connectivity, or integrating high-performance technology into a larger security system, we can help you select the right solutions to power your installations. Contact us today for pricing, training, or to request a demo of the 75-inch Cable Trench System.

Visit sesproducts.com or reach out to learn more about how we can support your next project.
