Fast PoE Diagnosis and Cable Testing with the Jonard Tools POE-1

Jul 1, 2025 | Tools, Ip Video

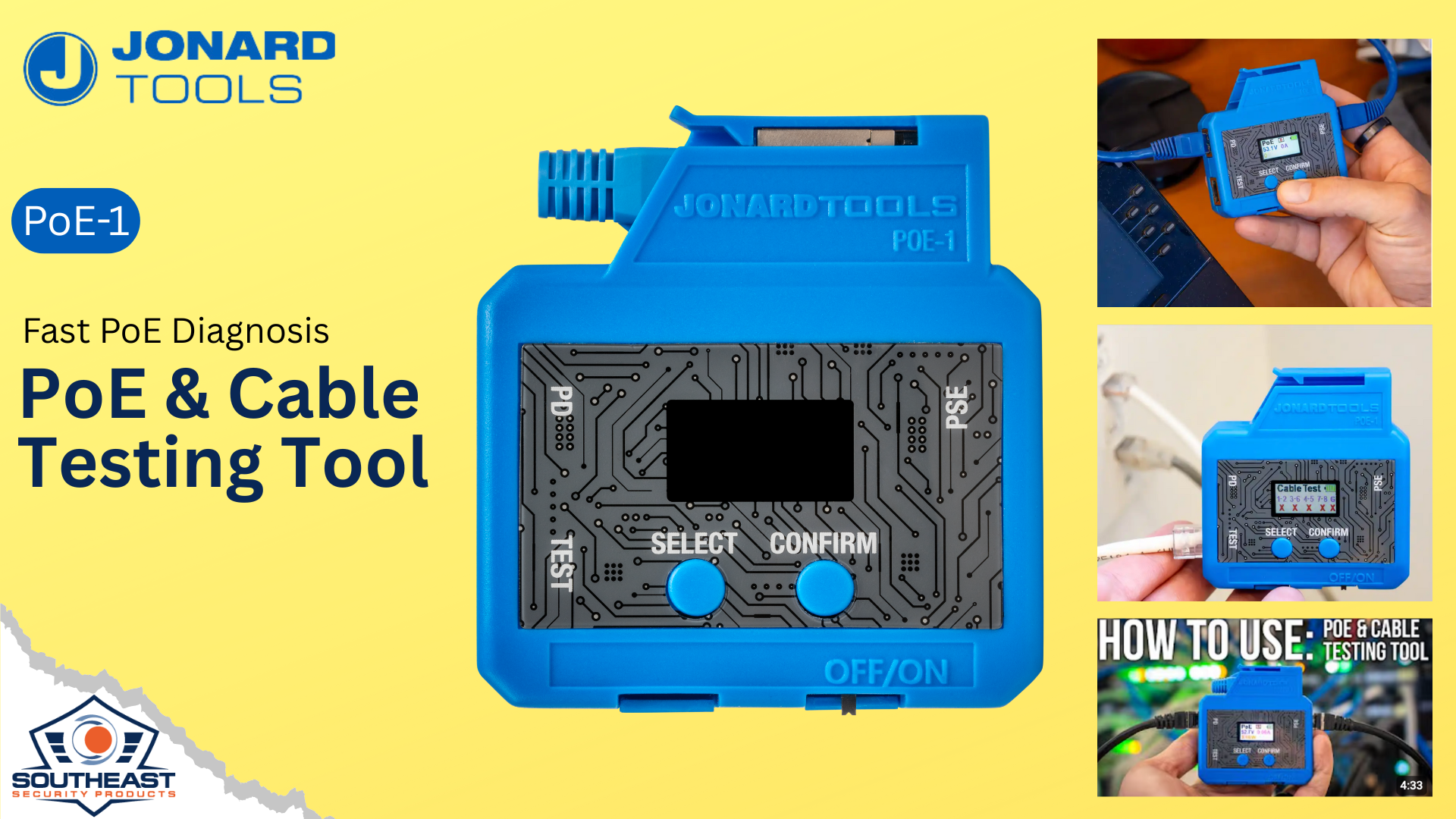

Jonard POE-1 PoE and Cable Testing Tool

Cut the Core Drilling: SDC WPT Wireless Power Transfer Device Makes Retrofits Easy

Messing with door cores is one of the biggest headaches for security dealers retrofitting electrified hardware—especially when dealing with wood or fire-rated doors. Fortunately, the SDC WPT Wireless Power Transfer Device solves that problem by delivering power and data across the door gap without any moving parts, wires, or core drilling.

Ideal for both retrofit and new construction, this RF-powered solution simplifies installations, minimizes vandal-prone wiring, and keeps projects on schedule. Whether you’re updating an older access control system or installing electric locks on a wood or steel door, the SDC WPT gives you the power—literally—to get the job done cleanly and compliantly.

Key Product Features

  • Wireless RF power transfer—no door core drilling required
  • Compatible with steel and wood doors
  • Transfers both energy and data (REX, DPS, latch status)
  • Visual LED status indicator
  • Field-selectable dual voltage output (12VDC or 24VDC)
  • Up to 1/4” (7mm) door gap tolerance
  • Flexible mounting on latch, hinge, or top frame
  • No moving parts or exposed wires—zero wear points
  • Adjustable unlock trigger (1–90 seconds)
  • Includes fixed 4-second unlock trigger for standard REX

Use Cases & Dealer Benefits

The WPT is a retrofit-friendly, code-compliant solution designed for:

  • Failsecure Electrified Locks and Latches: Power mortise, cylindrical, or rim locks without wiring hassles.
  • High-Traffic Doors: Reduce wear and tear from wire loops and moving parts.
  • Historic and Finished Doors: Maintain door aesthetics without compromising functionality.
  • Healthcare and Schools: Perfect for touchless entry installations using wave-to-open sensors.
  • Compliance Upgrades: Ideal for projects needing to meet UL fire and burglary ratings.

Why Dealers Love It:

  • No Core Drilling = Faster Installs: Save labor and avoid damaging fire-rated or wood doors.
  • Reduced Callbacks: No wires to break or degrade over time.
  • More Tolerant Alignment: Easier to install than inductive wireless devices.
  • Upsell Opportunity: Bundle with electrified locksets, exit devices, and wave-to-open switches.
  • Profitable Retrofits: Unlock more margin on existing door openings where wiring is difficult.

Technical Summary

  • Power Input (Frame Side): 600 mA @ 24 VDC
  • Power Output (Door Side):
    • 600 mA @ 12 VDC
    • 300 mA @ 24 VDC
  • Door Gap Tolerance: Up to 1/4″ (7mm)
  • Alignment Tolerance: Horizontal & vertical < 5/64” (2mm)
  • Dry Inputs:
    • (1) 4-second fixed unlock trigger
    • (1) 1–90 second adjustable unlock timer
  • Dry Outputs (Frame Side):
    • (2) SPDT, 1A @ 30 VDC resistive
    • (2) SPST-NO, 100 mA @ 60 VDC resistive
  • Environmental Rating: -4°F to 140°F
  • Weight: 1 lb
  • Certifications:
    • UL 10C Positive Pressure Fire Tests
    • UL 1034 Burglary-Resistant Locking Mechanisms

Note: For use with failsecure (power-to-unlock) locks only. Not compatible with failsafe or continuously dogged locks.

How the SDC WPT Works

Unlike inductive systems that require precise coil alignment, the WPT uses RF energy, which:

  • Transmits power as radio waves across the door gap.
  • Converts the RF signal into usable DC voltage via an internal receiver.
  • Transfers data (REX, DPS, latch status) along with power.
  • Is less sensitive to vertical and horizontal misalignment than coil-based systems.

This makes the WPT more installer-friendly and reliable in real-world deployments—especially in field conditions where perfect alignment isn’t always possible.

Accessory Highlight: WPT Drill Jig

For installers working with solid or particle-filled wood doors, SDC offers a WPT Drill Jig Assembly (part #SDC-WPT), available from JustDoorToolz. This makes prep quick, clean, and precise—ensuring a secure, code-compliant fit for every install.

Partner with SESP for Your SDC Installations
Southeast Security Products represents SDC and other best-in-class manufacturers across the Southeast U.S., offering hands-on support, product expertise, and dealer-focused programs to help you grow your business. Whether you’re building your first smart home package, upgrading to next-gen connectivity, or integrating high-performance technology into a larger security system, we can help you select the right solutions to power your installations. Contact us today for pricing, training, or to request a demo of the WPT Wireless Power Transfer Device.

Visit sesproducts.com or reach out to learn more about how we can support your next project.

Jonard POE-1 is the compact, go-to PoE and cable tester that every low-voltage integrator needs in the field. Designed for quick diagnostics, daily field use, and reliable results, the Jonard POE-1 gives you everything required to verify PoE voltage, data links, and Ethernet cable wiring in one rugged, handheld tool. Whether you’re deploying IP cameras, VoIP phones, or wireless access points, this smart tester helps you avoid callbacks and confirm everything is powered and wired correctly the first time.

With the Jonard POE-1, security professionals can quickly diagnose issues in the field before they become costly service calls. It’s compact, battery-free, and ideal for verifying installation quality during or after setup on any PoE-powered device.

Key Product Features

  • Detects PoE presence and displays power type (IEEE 802.3af/at/bt)

  • Identifies which wire pairs deliver power (Mode A, Mode B, or 4-pair)

  • Displays real-time voltage on a digital LCD

  • Tests for Ethernet data links (10/100/1000 Mbps)

  • Cable testing mode verifies continuity and pinout

  • Lightweight and rugged housing for field use

  • No batteries required—powered directly from the PoE line

    Use Cases / Dealer Benefits

    Whether you’re an access control technician, security camera installer, or commercial network integrator, the Jonard POE-1 streamlines your workflow. Here’s how:

    • Verify Installations on the Spot: Confirm that a PoE switch or injector is powering the correct pairs before connecting expensive gear.

    • Simplify Troubleshooting: Identify if an issue is with the cable, the switch, or the powered device—before replacing equipment unnecessarily.

    • Save Time on Service Calls: One tester checks both PoE delivery and cable pinouts, reducing diagnostic time dramatically.

    • Universal Compatibility: The Jonard POE-1 is compatible with both passive and active PoE devices, making it ideal for a wide range of job sites.

    • Boost Job Margins: Fewer callbacks and faster turnarounds mean more profit per job and higher customer satisfaction.

    The Jonard POE-1 makes troubleshooting easy and reliable. Whether you’re installing IP security cameras, WAPs, or smart lighting systems, it helps ensure everything is working as intended—before you leave the job site.

    Technical Summary

    The Jonard POE-1 PoE & Cable Testing Tool combines multiple testing functions into one compact, easy-to-use device. Here’s what dealers should know:

    • PoE Support: IEEE 802.3af (PoE), 802.3at (PoE+), and 802.3bt (PoE++) compliant

    • Voltage Range: Detects and displays PoE voltage from 3.5V to 56V

    • Testing Modes:

      • PoE Detection Mode: Shows PoE presence, power type, and voltage

      • Link Detection Mode: Verifies live Ethernet data links at 10/100/1000 Mbps

      • Cable Testing Mode: Pinout check and continuity testing with included remote

    • Display: Bright, easy-to-read backlit LCD

    • Connectivity: RJ45 test port and auxiliary port

    • Power Source: Line-powered via PoE—no need for batteries

    • Form Factor: Pocket-sized, durable, field-ready

    The tester includes:

    • POE-1 unit

    • Cable tester remote terminator

    • Soft carrying pouch

    • Quick-start reference guide

    The Jonard POE-1 supports IEEE-compliant PoE standards and clearly displays voltage, mode, and link status to eliminate any guesswork. With tools like this, you’re not just testing—you’re installing with confidence.

    Partner with SESP for Your Jonard Tools Installations

    Southeast Security Products represents Jonard Tools and other best-in-class manufacturers across the Southeast U.S., offering hands-on support, product expertise, and dealer-focused programs to help you grow your business. Whether you’re building your first smart home package, upgrading to next-gen connectivity, or integrating high-performance technology into a larger security system, we can help you select the right solutions to power your installations. Contact us today for pricing, training, or to request a demo of the Jonard POE-1 PoE & Cable Testing Tool.

    Visit sesproducts.com or reach out to learn more about how we can support your next project.
