Maximize Install Efficiency with the CTV-8K Multifunctional 8K CCTV Tester

Jun 10, 2025 | Tools, Ip Video

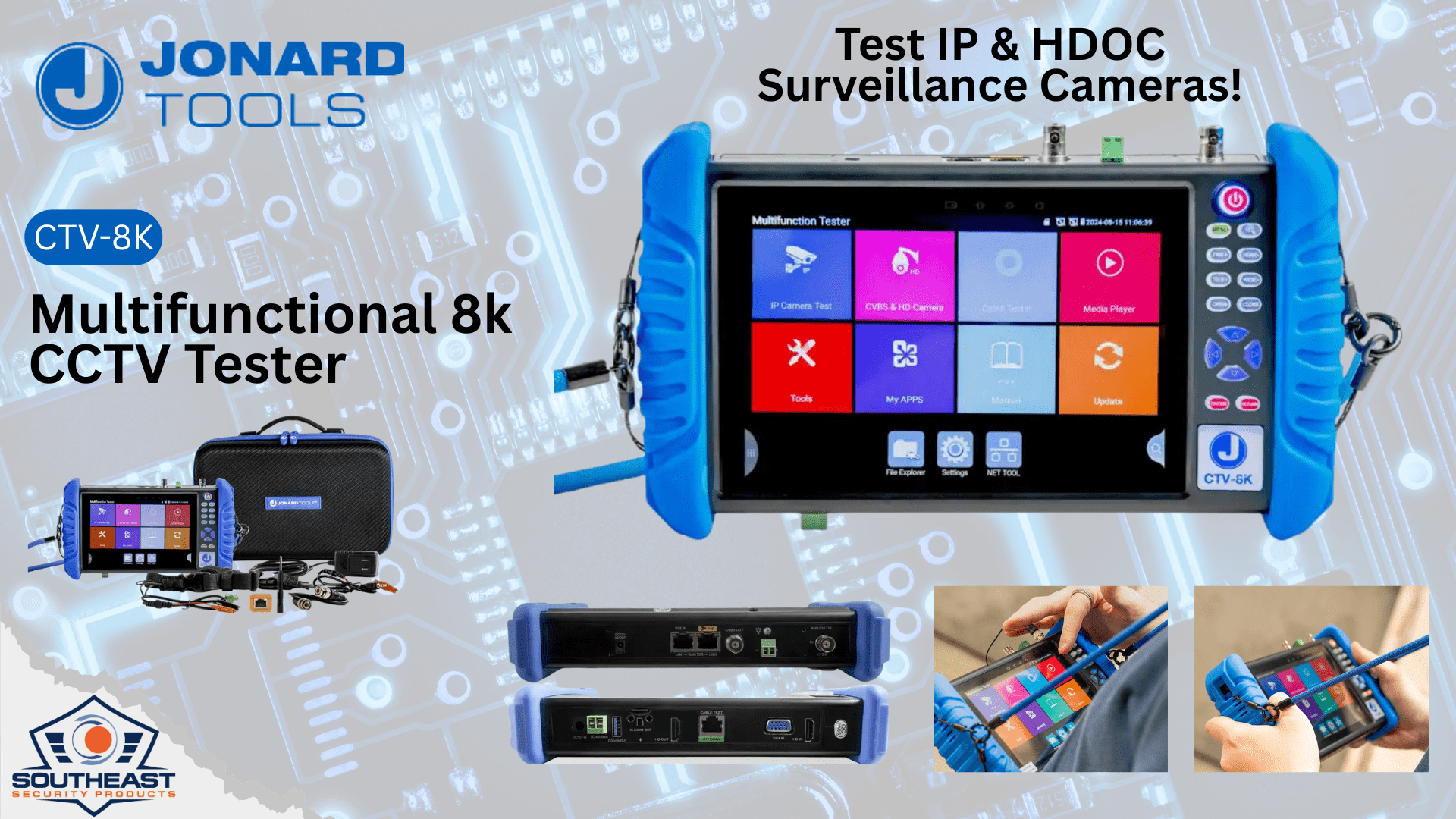

CTV-8K Multifunctional 8K CCTV Tester from Jonard Tools

Cut the Core Drilling: SDC WPT Wireless Power Transfer Device Makes Retrofits Easy

Messing with door cores is one of the biggest headaches for security dealers retrofitting electrified hardware—especially when dealing with wood or fire-rated doors. Fortunately, the SDC WPT Wireless Power Transfer Device solves that problem by delivering power and data across the door gap without any moving parts, wires, or core drilling.

Ideal for both retrofit and new construction, this RF-powered solution simplifies installations, minimizes vandal-prone wiring, and keeps projects on schedule. Whether you’re updating an older access control system or installing electric locks on a wood or steel door, the SDC WPT gives you the power—literally—to get the job done cleanly and compliantly.

Key Product Features

  • Wireless RF power transfer—no door core drilling required
  • Compatible with steel and wood doors
  • Transfers both energy and data (REX, DPS, latch status)
  • Visual LED status indicator
  • Field-selectable dual voltage output (12VDC or 24VDC)
  • Up to 1/4” (7mm) door gap tolerance
  • Flexible mounting on latch, hinge, or top frame
  • No moving parts or exposed wires—zero wear points
  • Adjustable unlock trigger (1–90 seconds)
  • Includes fixed 4-second unlock trigger for standard REX

Use Cases & Dealer Benefits

The WPT is a retrofit-friendly, code-compliant solution designed for:

  • Failsecure Electrified Locks and Latches: Power mortise, cylindrical, or rim locks without wiring hassles.
  • High-Traffic Doors: Reduce wear and tear from wire loops and moving parts.
  • Historic and Finished Doors: Maintain door aesthetics without compromising functionality.
  • Healthcare and Schools: Perfect for touchless entry installations using wave-to-open sensors.
  • Compliance Upgrades: Ideal for projects needing to meet UL fire and burglary ratings.

Why Dealers Love It:

  • No Core Drilling = Faster Installs: Save labor and avoid damaging fire-rated or wood doors.
  • Reduced Callbacks: No wires to break or degrade over time.
  • More Tolerant Alignment: Easier to install than inductive wireless devices.
  • Upsell Opportunity: Bundle with electrified locksets, exit devices, and wave-to-open switches.
  • Profitable Retrofits: Unlock more margin on existing door openings where wiring is difficult.

Technical Summary

  • Power Input (Frame Side): 600 mA @ 24 VDC
  • Power Output (Door Side):
    • 600 mA @ 12 VDC
    • 300 mA @ 24 VDC
  • Door Gap Tolerance: Up to 1/4″ (7mm)
  • Alignment Tolerance: Horizontal & vertical < 5/64” (2mm)
  • Dry Inputs:
    • (1) 4-second fixed unlock trigger
    • (1) 1–90 second adjustable unlock timer
  • Dry Outputs (Frame Side):
    • (2) SPDT, 1A @ 30 VDC resistive
    • (2) SPST-NO, 100 mA @ 60 VDC resistive
  • Environmental Rating: -4°F to 140°F
  • Weight: 1 lb
  • Certifications:
    • UL 10C Positive Pressure Fire Tests
    • UL 1034 Burglary-Resistant Locking Mechanisms

Note: For use with failsecure (power-to-unlock) locks only. Not compatible with failsafe or continuously dogged locks.

How the SDC WPT Works

Unlike inductive systems that require precise coil alignment, the WPT uses RF energy, which:

  • Transmits power as radio waves across the door gap.
  • Converts the RF signal into usable DC voltage via an internal receiver.
  • Transfers data (REX, DPS, latch status) along with power.
  • Is less sensitive to vertical and horizontal misalignment than coil-based systems.

This makes the WPT more installer-friendly and reliable in real-world deployments—especially in field conditions where perfect alignment isn’t always possible.

Accessory Highlight: WPT Drill Jig

For installers working with solid or particle-filled wood doors, SDC offers a WPT Drill Jig Assembly (part #SDC-WPT), available from JustDoorToolz. This makes prep quick, clean, and precise—ensuring a secure, code-compliant fit for every install.

Partner with SESP for Your SDC Installations
Southeast Security Products represents SDC and other best-in-class manufacturers across the Southeast U.S., offering hands-on support, product expertise, and dealer-focused programs to help you grow your business. Whether you’re building your first smart home package, upgrading to next-gen connectivity, or integrating high-performance technology into a larger security system, we can help you select the right solutions to power your installations. Contact us today for pricing, training, or to request a demo of the WPT Wireless Power Transfer Device.

Visit sesproducts.com or reach out to learn more about how we can support your next project.

The CTV-8K Multifunctional 8K CCTV Tester is the all-in-one solution today’s security dealers need to streamline camera installations, troubleshoot on-site issues, and reduce callbacks. Designed for both IP and analog video systems, this powerful tool gives technicians the ability to test, configure, and verify surveillance systems in the field — all from a single handheld device.

In a competitive install environment where efficiency, accuracy, and uptime matter most, the CTV-8K Multifunctional 8K CCTV Tester is a must-have asset for dealers and integrators who want to complete more jobs in less time and with fewer tools.

Key Features of the CTV-8K Multifunctional 8K CCTV Tester

  • Supports 8K video testing with up to 3840×2160 resolution at 30 FPS for ultra-HD cameras

  • 8-inch capacitive touch screen (1280×800) with an intuitive Android OS interface

  • Built-in H.265/H.264 decoding for IP camera streams

  • Supports 4K HDMI input and HDMI output for monitor testing

  • PoE power output (up to 24W) to power IP cameras directly during setup

  • ONVIF protocol support for IP camera discovery, configuration, and testing

  • Analog video testing via CVBS/TVI/CVI/AHD input up to 8MP

  • Built-in Wi-Fi, RJ45 port, USB, and Micro SD card support

  • IP address scanner and network diagnostics tools

  • Includes TDR cable tester, optical power meter, multimeter, and more

Use Cases and Dealer Benefits

The CTV-8K Multifunctional 8K CCTV Tester is built with real-world job sites in mind. Whether you’re working on a multi-camera IP surveillance system or maintaining legacy coaxial systems, this device adapts to nearly any project. Here’s how dealers benefit:

  • Reduce truck rolls: Troubleshoot cameras and network issues on-site without bringing in a second technician or additional equipment.

  • Accelerate installs: From powering up PoE cameras to configuring IP addresses via ONVIF, this tool speeds up your entire deployment process.

  • Work smarter, not harder: With built-in apps for PTZ control, video snapshot, and network testing, techs can move from camera to camera with confidence.

  • Eliminate guesswork: Use the HDMI output and touch display to verify camera feeds, angles, and settings before leaving the site.

  • Save money: One tester replaces several devices, reducing tool bag clutter and long-term tool costs.

For integrators who manage multiple system types — IP, analog, coax, and fiber — this device brings everything together. With built-in TDR and OPM tools, it also helps installers working in environments with fiber backbones or complex cable runs.

Technical Summary

  • Display: 8″ capacitive touch screen, 1280×800 resolution

  • OS: Android 11, Quad-core processor, 2GB RAM / 32GB storage

  • Video Inputs: HDMI (input/output), CVBS/TVI/CVI/AHD, IP (RJ45 or Wi-Fi)

  • Audio Support: Microphone and speaker built in

  • Storage: Supports microSD cards up to 256GB

  • Camera Powering: 12V/3A DC output and 48V PoE output up to 24W

  • Battery Life: 7.4V 5000mAh rechargeable lithium battery, 10+ hour use

  • Includes: Tester, soft carrying case, adapters, cables, shoulder strap, and power supply

Partner with SESP surveillance, intrusion and access control Installations

Southeast Security Products represents Jonard Tools and other best-in-class manufacturers across the Southeast U.S., offering hands-on support, product expertise, and dealer-focused programs to help you grow your business. Whether you’re building your first smart home package, upgrading to next-gen connectivity, or integrating high-performance technology into a larger security system, we can help you select the right solutions to power your installations. Contact us today for pricing, training, or to request a demo of the CTV-8K Multifunctional 8K CCTV Tester.

Visit sesproducts.com or reach out to learn more about how we can support your next project.
