A Smarter Way to Troubleshoot: The AMM-600 Multimeter from Jonard Tools

Jun 6, 2025 | Tools

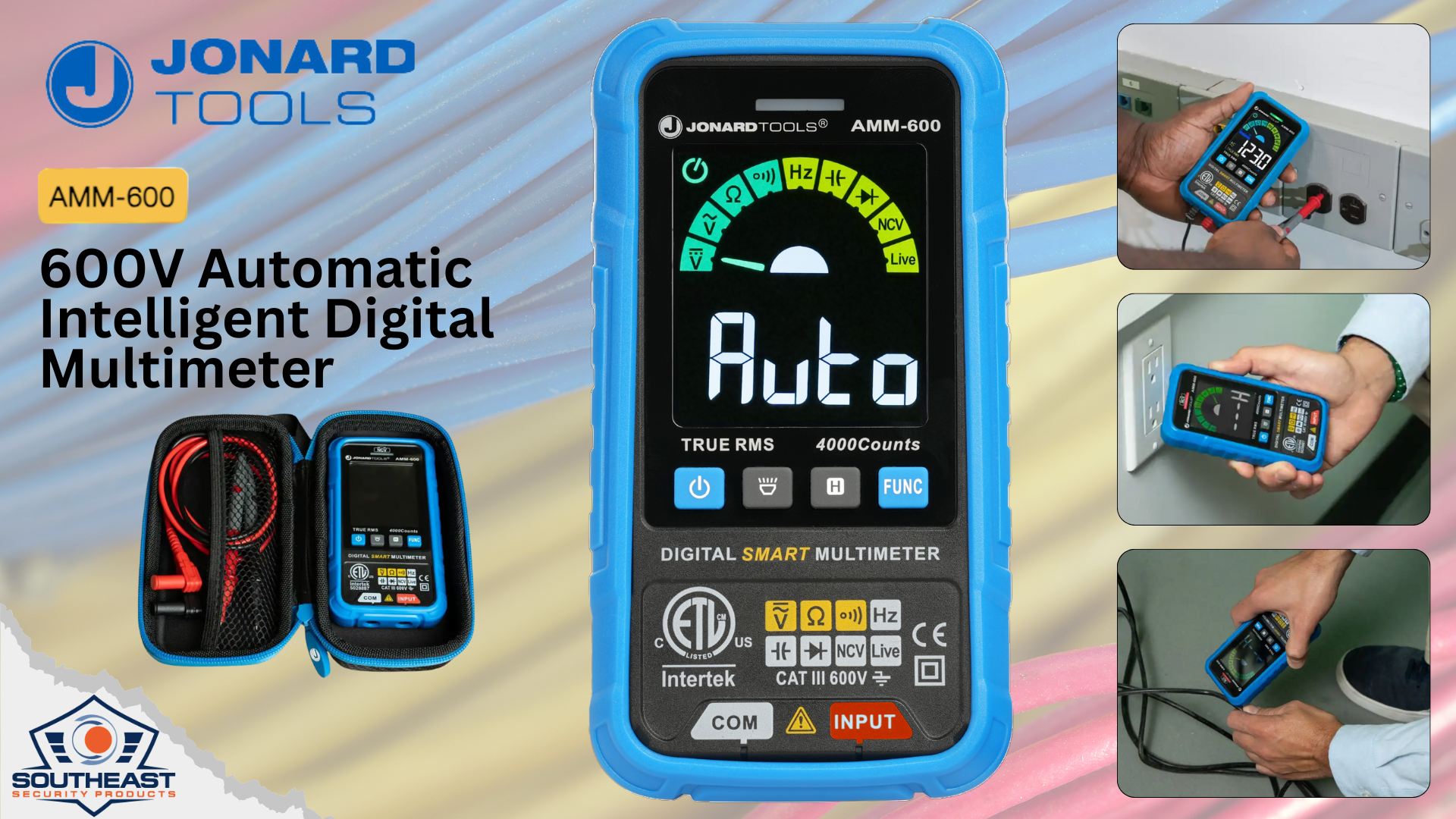

Jonard AMM-600 Multimeter with case and field use examples

Cut the Core Drilling: SDC WPT Wireless Power Transfer Device Makes Retrofits Easy

Messing with door cores is one of the biggest headaches for security dealers retrofitting electrified hardware—especially when dealing with wood or fire-rated doors. Fortunately, the SDC WPT Wireless Power Transfer Device solves that problem by delivering power and data across the door gap without any moving parts, wires, or core drilling.

Ideal for both retrofit and new construction, this RF-powered solution simplifies installations, minimizes vandal-prone wiring, and keeps projects on schedule. Whether you’re updating an older access control system or installing electric locks on a wood or steel door, the SDC WPT gives you the power—literally—to get the job done cleanly and compliantly.

Key Product Features

  • Wireless RF power transfer—no door core drilling required
  • Compatible with steel and wood doors
  • Transfers both energy and data (REX, DPS, latch status)
  • Visual LED status indicator
  • Field-selectable dual voltage output (12VDC or 24VDC)
  • Up to 1/4” (7mm) door gap tolerance
  • Flexible mounting on latch, hinge, or top frame
  • No moving parts or exposed wires—zero wear points
  • Adjustable unlock trigger (1–90 seconds)
  • Includes fixed 4-second unlock trigger for standard REX

Use Cases & Dealer Benefits

The WPT is a retrofit-friendly, code-compliant solution designed for:

  • Failsecure Electrified Locks and Latches: Power mortise, cylindrical, or rim locks without wiring hassles.
  • High-Traffic Doors: Reduce wear and tear from wire loops and moving parts.
  • Historic and Finished Doors: Maintain door aesthetics without compromising functionality.
  • Healthcare and Schools: Perfect for touchless entry installations using wave-to-open sensors.
  • Compliance Upgrades: Ideal for projects needing to meet UL fire and burglary ratings.

Why Dealers Love It:

  • No Core Drilling = Faster Installs: Save labor and avoid damaging fire-rated or wood doors.
  • Reduced Callbacks: No wires to break or degrade over time.
  • More Tolerant Alignment: Easier to install than inductive wireless devices.
  • Upsell Opportunity: Bundle with electrified locksets, exit devices, and wave-to-open switches.
  • Profitable Retrofits: Unlock more margin on existing door openings where wiring is difficult.

Technical Summary

  • Power Input (Frame Side): 600 mA @ 24 VDC
  • Power Output (Door Side):
    • 600 mA @ 12 VDC
    • 300 mA @ 24 VDC
  • Door Gap Tolerance: Up to 1/4″ (7mm)
  • Alignment Tolerance: Horizontal & vertical < 5/64” (2mm)
  • Dry Inputs:
    • (1) 4-second fixed unlock trigger
    • (1) 1–90 second adjustable unlock timer
  • Dry Outputs (Frame Side):
    • (2) SPDT, 1A @ 30 VDC resistive
    • (2) SPST-NO, 100 mA @ 60 VDC resistive
  • Environmental Rating: -4°F to 140°F
  • Weight: 1 lb
  • Certifications:
    • UL 10C Positive Pressure Fire Tests
    • UL 1034 Burglary-Resistant Locking Mechanisms

Note: For use with failsecure (power-to-unlock) locks only. Not compatible with failsafe or continuously dogged locks.

How the SDC WPT Works

Unlike inductive systems that require precise coil alignment, the WPT uses RF energy, which:

  • Transmits power as radio waves across the door gap.
  • Converts the RF signal into usable DC voltage via an internal receiver.
  • Transfers data (REX, DPS, latch status) along with power.
  • Is less sensitive to vertical and horizontal misalignment than coil-based systems.

This makes the WPT more installer-friendly and reliable in real-world deployments—especially in field conditions where perfect alignment isn’t always possible.

Accessory Highlight: WPT Drill Jig

For installers working with solid or particle-filled wood doors, SDC offers a WPT Drill Jig Assembly (part #SDC-WPT), available from JustDoorToolz. This makes prep quick, clean, and precise—ensuring a secure, code-compliant fit for every install.

Partner with SESP for Your SDC Installations
Southeast Security Products represents SDC and other best-in-class manufacturers across the Southeast U.S., offering hands-on support, product expertise, and dealer-focused programs to help you grow your business. Whether you’re building your first smart home package, upgrading to next-gen connectivity, or integrating high-performance technology into a larger security system, we can help you select the right solutions to power your installations. Contact us today for pricing, training, or to request a demo of the WPT Wireless Power Transfer Device.

Visit sesproducts.com or reach out to learn more about how we can support your next project.

The Jonard AMM-600 Multimeter is a smart, reliable tool designed to meet the demands of today’s security dealers and low-voltage pros. Whether you’re testing power at a maglock, troubleshooting a fire panel, or verifying camera voltage, this intelligent multimeter helps you get it right the first time—saving time and avoiding costly callbacks.

Designed by Jonard Tools specifically for security and low-voltage professionals, the AMM-600 isn’t just another multimeter—it’s an intelligent, rugged field tool that streamlines diagnostics with automatic detection, safety features, and technician-friendly design. From continuity checks to non-contact voltage testing, it’s the all-in-one solution that keeps your installs running smoothly.

Key Features of the AMM-600 Multimeter

What sets the AMM-600 apart is its smart functionality, user-first design, and rugged field-readiness. Highlights include:

  • Auto-Detects AC/DC Voltage, Resistance, and Continuity
    No need to switch modes manually—the AMM-600 intelligently identifies what you’re testing and auto-adjusts for optimal accuracy.

  • True RMS Measurement
    Provides more accurate readings when measuring non-sinusoidal AC waveforms, common in today’s power systems.

  • Low Impedance (LoZ) Mode
    Eliminates ghost voltage and ensures you’re measuring live circuits correctly, a must-have for safety and accuracy.

  • Non-Contact Voltage Detection (NCV)
    Built-in NCV sensor with visual and audible alerts keeps installers safer and faster when identifying live wires.

  • Bright LCD Display with Backlight and Analog Bar Graph
    Easy-to-read display even in dim equipment closets or outdoor enclosures.

  • Built-in Flashlight
    Integrated LED flashlight illuminates work areas—no need to juggle your phone light while probing terminals.

  • Overload Protection
    Safety-first design prevents damage to the meter and protects the user from dangerous surges or incorrect connections.

  • Auto Power Off & Low Battery Indicator
    Maximizes battery life with auto-off function and clear visual alerts when power is running low.

  • Test Leads and Carrying Case Included
    Everything you need to start testing, packaged in a protective case ideal for tool bags or belt kits.

Use Cases & Dealer Benefits

If you serve dealers and integrators who install or service any of the following systems, the AMM-600 can quickly become their go-to test tool:

  • Access Control Panels – Easily verify 12V/24V DC power at maglocks, readers, and control boards.

  • Alarm Systems – Measure resistance for loop testing, or verify continuity on EOL resistors.

  • CCTV & IP Cameras – Confirm PoE presence, voltage levels, or power supply integrity.

  • Fire Panels – Identify faulty power supplies or inconsistent voltage at NAC and SLC loops.

  • Troubleshooting Field Calls – Quickly isolate faults with intelligent auto-ranging features that reduce the chance of incorrect meter settings.

For security and low-voltage dealers, the AMM-600 is an easy add-on sale for every new technician or installer kit. Its affordability and feature set offer great value, while the rugged design ensures long service life in the field.

Optional Technical Summary

For the tech-savvy installer or those specifying tools for their fleet, here are a few key specs:

  • Measurement Ranges:

    • AC/DC Voltage: 0–600V

    • Resistance: 0–60 MΩ

    • Capacitance: 0–60 mF

    • Frequency: 0–10 MHz

  • CAT III 600V Safety Rating: Safe for commercial-level installations

  • Operating Temperature: 32°F to 104°F (0°C to 40°C)

  • Power Supply: 2x AAA batteries (included)

  • Weight: Just 0.6 lbs – light enough for your belt or pocket

Why This Tool Belongs in Every Technician’s Bag

Security dealers are constantly looking for ways to reduce callbacks, improve installation quality, and shorten service times. The AMM-600 addresses all three.

It eliminates the guesswork, reduces the chance of user error, and accelerates troubleshooting time—saving your technicians (and your bottom line) valuable hours. Add in Jonard’s reputation for reliability and innovation, and you’ve got a multimeter that’s built for the field, not the lab.

Why Choose Jonard Tools and SESP?

Security dealers need tools that are built to perform day in and day out. The Jonard AMM-600 Multimeter delivers the intelligent features, rugged design, and dependable accuracy that technicians count on in the field. At Southeast Security Products, we proudly represent Jonard Tools because their products help our dealers work smarter, reduce callbacks, and complete jobs more efficiently.

Equip Your Team with the Right Tools

Whether you’re outfitting new techs or upgrading your service fleet, Southeast Security Products can help you choose the right diagnostic tools to keep your projects on track. We offer hands-on support, product training, and dealer-exclusive pricing to make sure you’re getting the most value from every purchase.

Southeast Security Products

We represent best-in-class security manufacturers like Jonard Tools across the Southeast U.S., offering hands-on support, product expertise, and dealer-focused programs to help you grow your business. Whether you’re a security dealer, integrator, or end user, we’re here to help you succeed. Visit sesproducts.com or contact us to learn more about how we can support your next project.
