Jonard Tools TriggerTack STG-100: The Low-Voltage Stapler Built for Pros

Jun 20, 2025 | Tools

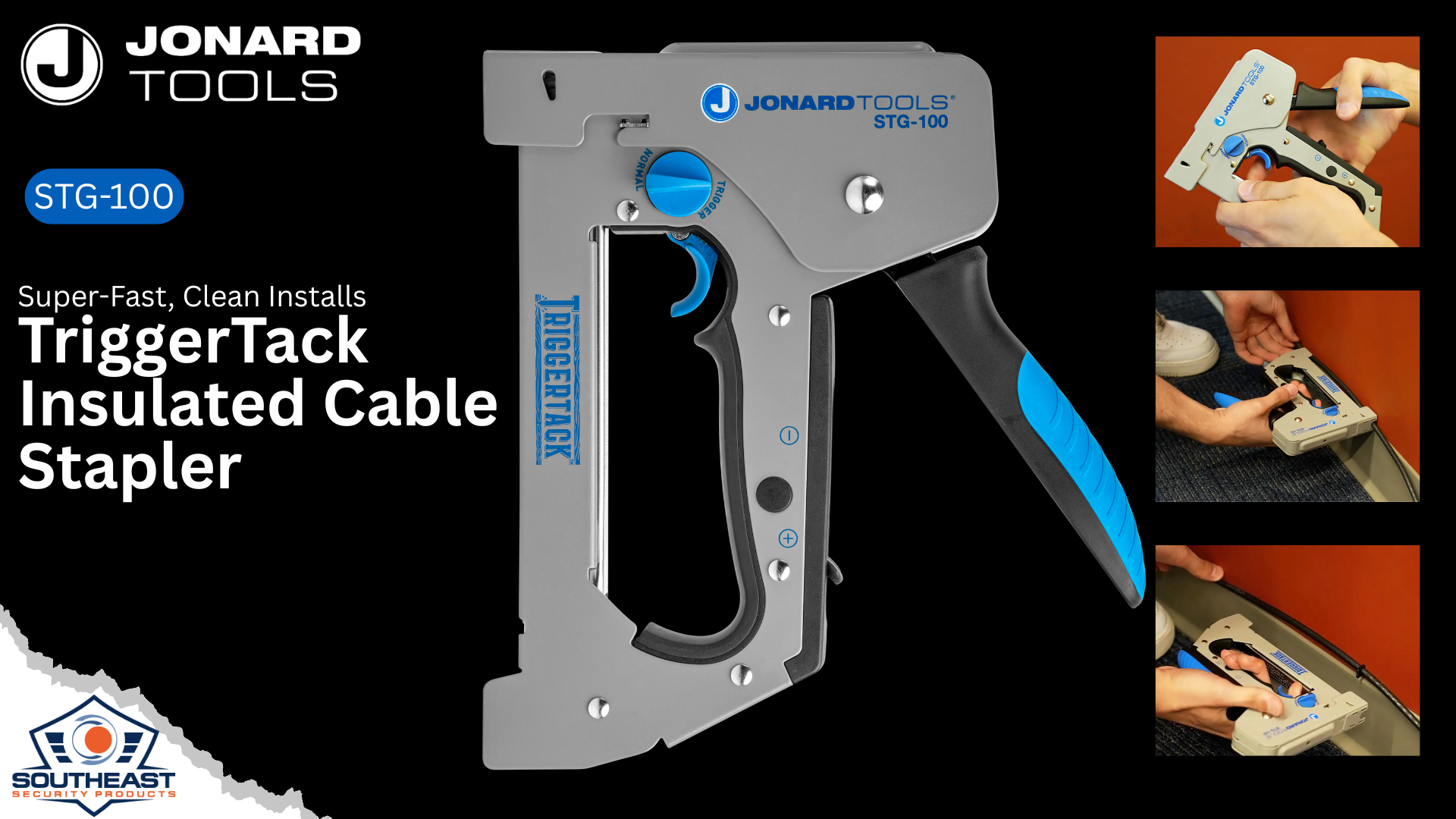

Jonard Tools TriggerTack STG-100 stapler securing coax cable to wood surface

Cut the Core Drilling: SDC WPT Wireless Power Transfer Device Makes Retrofits Easy

Messing with door cores is one of the biggest headaches for security dealers retrofitting electrified hardware—especially when dealing with wood or fire-rated doors. Fortunately, the SDC WPT Wireless Power Transfer Device solves that problem by delivering power and data across the door gap without any moving parts, wires, or core drilling.

Ideal for both retrofit and new construction, this RF-powered solution simplifies installations, minimizes vandal-prone wiring, and keeps projects on schedule. Whether you’re updating an older access control system or installing electric locks on a wood or steel door, the SDC WPT gives you the power—literally—to get the job done cleanly and compliantly.

Key Product Features

  • Wireless RF power transfer—no door core drilling required
  • Compatible with steel and wood doors
  • Transfers both energy and data (REX, DPS, latch status)
  • Visual LED status indicator
  • Field-selectable dual voltage output (12VDC or 24VDC)
  • Up to 1/4” (7mm) door gap tolerance
  • Flexible mounting on latch, hinge, or top frame
  • No moving parts or exposed wires—zero wear points
  • Adjustable unlock trigger (1–90 seconds)
  • Includes fixed 4-second unlock trigger for standard REX

Use Cases & Dealer Benefits

The WPT is a retrofit-friendly, code-compliant solution designed for:

  • Failsecure Electrified Locks and Latches: Power mortise, cylindrical, or rim locks without wiring hassles.
  • High-Traffic Doors: Reduce wear and tear from wire loops and moving parts.
  • Historic and Finished Doors: Maintain door aesthetics without compromising functionality.
  • Healthcare and Schools: Perfect for touchless entry installations using wave-to-open sensors.
  • Compliance Upgrades: Ideal for projects needing to meet UL fire and burglary ratings.

Why Dealers Love It:

  • No Core Drilling = Faster Installs: Save labor and avoid damaging fire-rated or wood doors.
  • Reduced Callbacks: No wires to break or degrade over time.
  • More Tolerant Alignment: Easier to install than inductive wireless devices.
  • Upsell Opportunity: Bundle with electrified locksets, exit devices, and wave-to-open switches.
  • Profitable Retrofits: Unlock more margin on existing door openings where wiring is difficult.

Technical Summary

  • Power Input (Frame Side): 600 mA @ 24 VDC
  • Power Output (Door Side):
    • 600 mA @ 12 VDC
    • 300 mA @ 24 VDC
  • Door Gap Tolerance: Up to 1/4″ (7mm)
  • Alignment Tolerance: Horizontal & vertical < 5/64” (2mm)
  • Dry Inputs:
    • (1) 4-second fixed unlock trigger
    • (1) 1–90 second adjustable unlock timer
  • Dry Outputs (Frame Side):
    • (2) SPDT, 1A @ 30 VDC resistive
    • (2) SPST-NO, 100 mA @ 60 VDC resistive
  • Environmental Rating: -4°F to 140°F
  • Weight: 1 lb
  • Certifications:
    • UL 10C Positive Pressure Fire Tests
    • UL 1034 Burglary-Resistant Locking Mechanisms

Note: For use with failsecure (power-to-unlock) locks only. Not compatible with failsafe or continuously dogged locks.

How the SDC WPT Works

Unlike inductive systems that require precise coil alignment, the WPT uses RF energy, which:

  • Transmits power as radio waves across the door gap.
  • Converts the RF signal into usable DC voltage via an internal receiver.
  • Transfers data (REX, DPS, latch status) along with power.
  • Is less sensitive to vertical and horizontal misalignment than coil-based systems.

This makes the WPT more installer-friendly and reliable in real-world deployments—especially in field conditions where perfect alignment isn’t always possible.

Accessory Highlight: WPT Drill Jig

For installers working with solid or particle-filled wood doors, SDC offers a WPT Drill Jig Assembly (part #SDC-WPT), available from JustDoorToolz. This makes prep quick, clean, and precise—ensuring a secure, code-compliant fit for every install.

Partner with SESP for Your SDC Installations
Southeast Security Products represents SDC and other best-in-class manufacturers across the Southeast U.S., offering hands-on support, product expertise, and dealer-focused programs to help you grow your business. Whether you’re building your first smart home package, upgrading to next-gen connectivity, or integrating high-performance technology into a larger security system, we can help you select the right solutions to power your installations. Contact us today for pricing, training, or to request a demo of the WPT Wireless Power Transfer Device.

Visit sesproducts.com or reach out to learn more about how we can support your next project.

Standard cable staplers just don’t cut it in the low-voltage world. Damaged cables, failed inspections, and frustrating installs are often the result of using generic tools on specialized jobs. The Jonard Tools TriggerTack STG-100 is purpose-built for security dealers and low-voltage installers who need a safe, efficient, and reliable way to secure cables—without compromising their integrity.

Unlike traditional staplers that can pinch or crush delicate wires, the TriggerTack STG-100 delivers consistent, flush, and safe fastening for coax, Cat5/6, alarm cable, AV wire, and more. Made with a stainless steel construction and a powder coat finish, the TriggerTack™ boasts exceptional durability while resisting wear and tear.This is the tool low-voltage pros have been waiting for.

Key Product Features

  • Built for Low-Voltage Cable
    Ideal for NM, coax, Cat5/Cat6, AV, speaker wire, and alarm cabling—without damage or deformation.

  • No-Crush Stapling Design
    Centered cable guide ensures fasteners land safely and securely without pinching the cable jacket.

  • 5 Staple Sizes Supported
    Accepts 5 insulated staple sizes from 5/16″ to 9/16″, covering a wide range of install scenarios.

  • Quick-Load Magazine
    Bottom-load feature makes reloading fast and intuitive—no tool flipping required.

  • Lightweight, Ergonomic Design
    Comfortable for long install days, designed for both right- and left-handed operation.

  • Durable, Jobsite-Ready Construction
    Engineered to stand up to the daily grind of real-world installs.



Use Cases / Dealer Benefits

The Jonard Tools TriggerTack STG-100 hits the sweet spot for dealers and integrators focused on efficiency and quality installs.

  • Structured Wiring Installations
    Run and secure Cat5/6 in new construction or retrofit jobs without zip ties or cable clips that don’t meet code.

  • Security System Installations
    Staple alarm cable, sensor wires, or surveillance camera power lines cleanly and professionally—no crushed conductors.

  • Audio/Visual & Home Theater
    Secure speaker wire and AV cabling along baseboards, ceilings, or framing with consistent tension and support.

  • Fewer Callbacks, Faster Jobs
    Reduce troubleshooting and callbacks caused by pinched or shorted wires. Installers work faster with better results.

  • Sell It as a Value-Add
    Distributors can bundle the TriggerTack STG-100 with staple refill packs and offer it as part of a pro installer toolkit.

This tool is especially valuable for integrators focused on residential security, MDU/condo builds, or small business installations where aesthetics and cable protection both matter.

Technical Summary

The Jonard Tools TriggerTack STG-100 is a specialized low-voltage cable stapler designed to fasten a variety of cables using insulated staples without crushing or damaging the wire. It features:

  • Bottom-load magazine for quick staple changes

  • Support for 5 insulated staple sizes (5/16″ to 9/16″)

    • STG-141 – 1/2″ x 1/4″ Insulated cable staples, white; 300 pack
    • STG-561 –  5/16″ x 5/15″ Insulated cable staples, white; 300 pack
    • STG-1456 – 1/4″ x 5/15″ Insulated cable staples, black; 300 pack

  • Lightweight, ergonomic housing

  • Ambidextrous design for left- or right-hand use

  • Compatibility with NM, coaxial, Cat5/Cat6, alarm, AV, and speaker wire

Jonard Tools—the world’s largest fiber optic tool supplier—delivers again with a tool that’s purpose-built and field-ready. This stapler reflects the same level of quality that pros expect from the Jonard brand.

Partner with SESP for Your Jonard Tools TriggerTack STG-100 Installations

Southeast Security Products represents Jonard Tools and other best-in-class manufacturers across the Southeast U.S., offering hands-on support, product expertise, and dealer-focused programs to help you grow your business. Whether you’re building your first smart home package, upgrading to next-gen connectivity, or integrating high-performance technology into a larger security system, we can help you select the right solutions to power your installations. Contact us today for pricing, training, or to request a demo of the Jonard Tools TriggerTack STG-100.

Visit sesproducts.com or reach out to learn more about how we can support your next project.
