Equip for Fiber Success with the TK-199R Ultimate Fiber Optic Tool Kit

Jun 15, 2025 | Tools, Fiber Optics

Cut the Core Drilling: SDC WPT Wireless Power Transfer Device Makes Retrofits Easy

Messing with door cores is one of the biggest headaches for security dealers retrofitting electrified hardware—especially when dealing with wood or fire-rated doors. Fortunately, the SDC WPT Wireless Power Transfer Device solves that problem by delivering power and data across the door gap without any moving parts, wires, or core drilling.

Ideal for both retrofit and new construction, this RF-powered solution simplifies installations, minimizes vandal-prone wiring, and keeps projects on schedule. Whether you’re updating an older access control system or installing electric locks on a wood or steel door, the SDC WPT gives you the power—literally—to get the job done cleanly and compliantly.

Key Product Features

  • Wireless RF power transfer—no door core drilling required
  • Compatible with steel and wood doors
  • Transfers both energy and data (REX, DPS, latch status)
  • Visual LED status indicator
  • Field-selectable dual voltage output (12VDC or 24VDC)
  • Up to 1/4” (7mm) door gap tolerance
  • Flexible mounting on latch, hinge, or top frame
  • No moving parts or exposed wires—zero wear points
  • Adjustable unlock trigger (1–90 seconds)
  • Includes fixed 4-second unlock trigger for standard REX

Use Cases & Dealer Benefits

The WPT is a retrofit-friendly, code-compliant solution designed for:

  • Failsecure Electrified Locks and Latches: Power mortise, cylindrical, or rim locks without wiring hassles.
  • High-Traffic Doors: Reduce wear and tear from wire loops and moving parts.
  • Historic and Finished Doors: Maintain door aesthetics without compromising functionality.
  • Healthcare and Schools: Perfect for touchless entry installations using wave-to-open sensors.
  • Compliance Upgrades: Ideal for projects needing to meet UL fire and burglary ratings.

Why Dealers Love It:

  • No Core Drilling = Faster Installs: Save labor and avoid damaging fire-rated or wood doors.
  • Reduced Callbacks: No wires to break or degrade over time.
  • More Tolerant Alignment: Easier to install than inductive wireless devices.
  • Upsell Opportunity: Bundle with electrified locksets, exit devices, and wave-to-open switches.
  • Profitable Retrofits: Unlock more margin on existing door openings where wiring is difficult.

Technical Summary

  • Power Input (Frame Side): 600 mA @ 24 VDC
  • Power Output (Door Side):
    • 600 mA @ 12 VDC
    • 300 mA @ 24 VDC
  • Door Gap Tolerance: Up to 1/4″ (7mm)
  • Alignment Tolerance: Horizontal & vertical < 5/64” (2mm)
  • Dry Inputs:
    • (1) 4-second fixed unlock trigger
    • (1) 1–90 second adjustable unlock timer
  • Dry Outputs (Frame Side):
    • (2) SPDT, 1A @ 30 VDC resistive
    • (2) SPST-NO, 100 mA @ 60 VDC resistive
  • Environmental Rating: -4°F to 140°F
  • Weight: 1 lb
  • Certifications:
    • UL 10C Positive Pressure Fire Tests
    • UL 1034 Burglary-Resistant Locking Mechanisms

Note: For use with failsecure (power-to-unlock) locks only. Not compatible with failsafe or continuously dogged locks.

How the SDC WPT Works

Unlike inductive systems that require precise coil alignment, the WPT uses RF energy, which:

  • Transmits power as radio waves across the door gap.
  • Converts the RF signal into usable DC voltage via an internal receiver.
  • Transfers data (REX, DPS, latch status) along with power.
  • Is less sensitive to vertical and horizontal misalignment than coil-based systems.

This makes the WPT more installer-friendly and reliable in real-world deployments—especially in field conditions where perfect alignment isn’t always possible.

Accessory Highlight: WPT Drill Jig

For installers working with solid or particle-filled wood doors, SDC offers a WPT Drill Jig Assembly (part #SDC-WPT), available from JustDoorToolz. This makes prep quick, clean, and precise—ensuring a secure, code-compliant fit for every install.

Partner with SESP for Your SDC Installations
Southeast Security Products represents SDC and other best-in-class manufacturers across the Southeast U.S., offering hands-on support, product expertise, and dealer-focused programs to help you grow your business. Whether you’re building your first smart home package, upgrading to next-gen connectivity, or integrating high-performance technology into a larger security system, we can help you select the right solutions to power your installations. Contact us today for pricing, training, or to request a demo of the WPT Wireless Power Transfer Device.

Visit sesproducts.com or reach out to learn more about how we can support your next project.

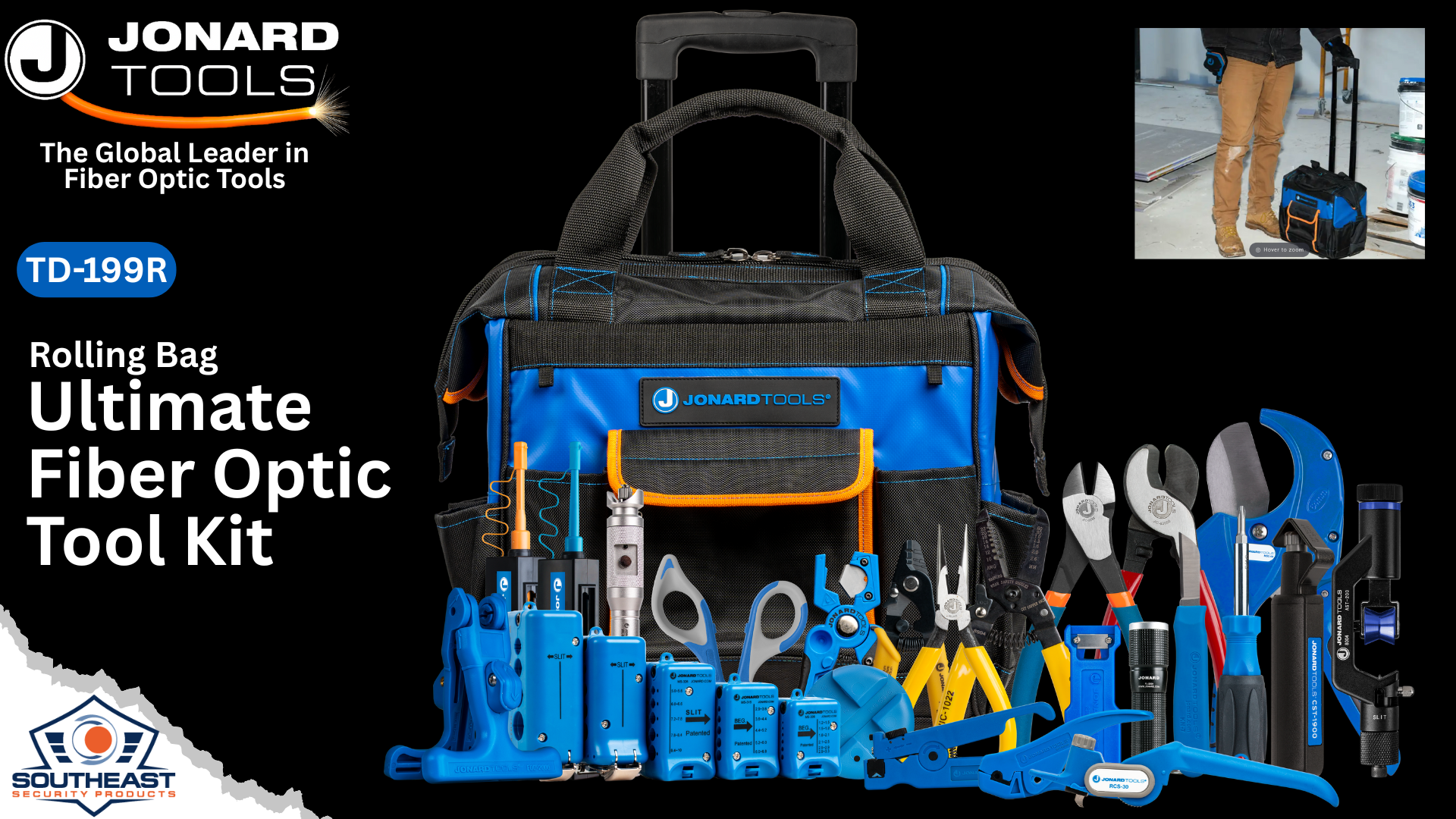

The TK-199R Ultimate Fiber Optic Tool Kit from Jonard Tools solves a common challenge security dealers face: having the right tools on-site for fiber optic installations and service calls. Whether you’re working on fiber backbone terminations, IP surveillance networks, or long-distance cable runs, this all-in-one toolkit eliminates guesswork and gear shortages.

Security dealers often piece together their fiber tools over time—one stripper here, a cleaver there, maybe a power meter in another pouch. That patchwork approach can lead to delays, inefficiencies, and costly return trips. The TK-199R Ultimate Fiber Optic Tool Kit is purpose-built to give integrators a comprehensive, professional-grade fiber solution from day one—everything you need to cut, strip, clean, inspect, and test fiber optic cable in one rugged case.

And it comes from **Jonard Tools—**the largest fiber optic tool supplier in the world—trusted by fiber techs and network professionals globally for quality, performance, and innovation.

Key Features of the TK-199R Ultimate Fiber Optic Tool Kit

  • All-in-One Fiber Optic Tool Kit Solution
    Includes strippers, cleavers, inspection tools, cleaning supplies, test equipment, and cable prep tools—all in a rugged carry case

  • Field-Grade Power Meter and Fault Locator
    Includes the FPM-50 Optical Power Meter and VFL-25 Visual Fault Locator for testing and troubleshooting

  • Professional Fiber Preparation Tools
    Features the MS-6 Mid Span Slitter and FCT-100 High-Precision Cleaver for accurate and efficient cable prep

  • Ready for the Field
    Durable, padded carry case with labeled compartments to protect tools and improve organization

  • Built by the Industry Leader
    Manufactured by Jonard Tools, the world’s leading supplier of fiber optic tools for telecom, security, and data network professionals

Use Cases and Dealer Benefits

Fiber optic cable is increasingly standard in today’s security systems. Whether it’s running fiber to an outdoor IP camera, linking buildings across a property, or providing lightning-resistant backbone for large sites, fiber is critical for modern infrastructure.

The TK-199R Ultimate Fiber Optic Tool Kit is the right choice for:

  • Security Integrators
    Ideal for terminating or testing fiber at the headend, between NVRs, or to media converters and IP cameras

  • Contractor and Field Tech Teams

  • A complete kit for every van or job box—no more borrowing tools from another crew

  • Dealers Ready to Bring Fiber In-House
    Reduce subcontracting and pre-terminated cable costs by handling fiber terminations yourself with the right tools and training

With this kit, dealers gain control over timelines and reduce the risk of project delays. It’s also a professional, branded way to show your clients that you’re equipped to handle advanced installations from start to finish.

Technical Summary

The TK-199R Ultimate Fiber Optic Tool Kit includes a full suite of tools to support single-mode and multimode fiber installation, inspection, cleaning, and verification. The key components include:

  • FPM-50 Optical Power Meter: Covers 850/1300/1310/1490/1550/1625nm wavelengths; -50 to +26 dBm range

  • VFL-25 Visual Fault Locator: 25mW output, visible up to 5km; perfect for checking breaks, bends, or tight loops

  • FCT-100 Fiber Cleaver: Supports 250μm and 900μm fiber, delivers over 48,000 cleaves with replaceable blade

  • MS-6 Mid Span Slitter: Allows clean, precise access to fiber without damaging the core—supports 1.2mm to 3.3mm jackets

  • FIS-200 Fiber Inspection Scope: Provides 200x magnification for checking connector end-face cleanliness and integrity

In addition to these top-performing tools, the kit contains other essential items including FCC-125 cassette cleaners, fiber wipes, alcohol dispenser bottles, Kevlar shears, a fiber preparation tray, marker pens, and more—all curated to give techs everything needed on the job site.

Partner with SESP and Jonard Toolsd for Your Fiber Optic Installations

Southeast Security Products represents Jonard Tools and other best-in-class manufacturers across the Southeast U.S., offering hands-on support, product expertise, and dealer-focused programs to help you grow your business. Whether you’re building your first smart home package, upgrading to next-gen connectivity, or integrating high-performance technology into a larger security system, we can help you select the right solutions to power your installations. Contact us today for pricing, training, or to request a demo of the TK-199R Ultimate Fiber Optic Tool Kit.

Visit sesproducts.com or reach out to learn more about how we can support your next project.
