Defining UTP Ethernet Extenders

Ethernet networking has a maximum distance of 328′ (100 meters) between a network switch and a connected device.  Often, connected devices are further away than the 328′ limitation, so how can you extend the ethernet distance beyond 328′?

UTP (Unshielded Twisted Pair, or Cat 5/6) extenders are devices that are usually placed on either end of a cable; the control site or the camera site and can extend distance up to 2,000′ at 10/100 speeds.  This eliminates the need to place it at any specific distance such as a repeater, which must be placed within 328 feet of the source of the device it is communicating with.  An extender extends the transmission of data, which includes IP video, PoE, or both.

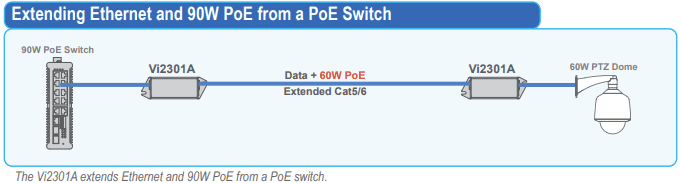

In the diagram below, a Vigitron Vi2301A UTP Extender is placed on both ends of the cable run allowing for up to 2000′ of extended UTP (and PoE).

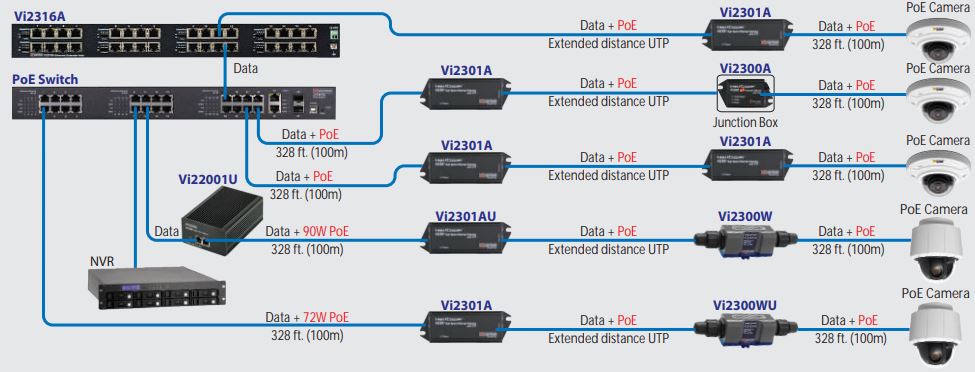

Vigitron UTP Extenders with Pass-Through PoE

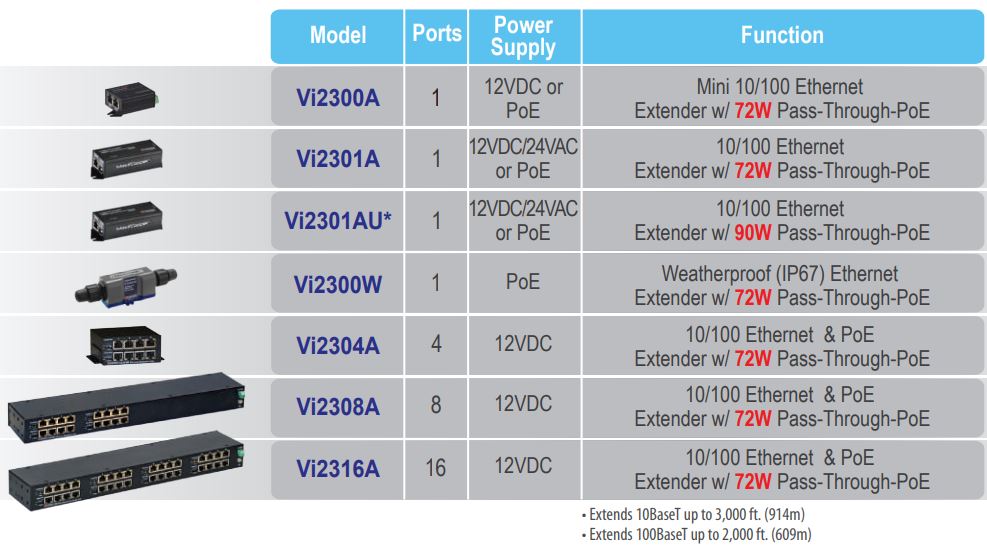

Vigitron’s UTP Extenders are available in several configurations.  The Vi2300 series can transmit IP data and provide up to 72W PoE over extended UTP at distances up to 2,000 feet (10/100) providing a cost effective method of powering, monitoring, and controlling your IP cameras.

The Vi2300A Mini can fit inside a common 4 inch square wiring box and J-box enclosures, making it the perfect solution for tight locations requiring security and environmental protection.

The multi-port MaxiiCopper™ UTP extenders are ideal for larger extended distance UTP systems. The Vi230xxU models can pass through up to 90W PoE at long distances to power high power PTZ cameras.

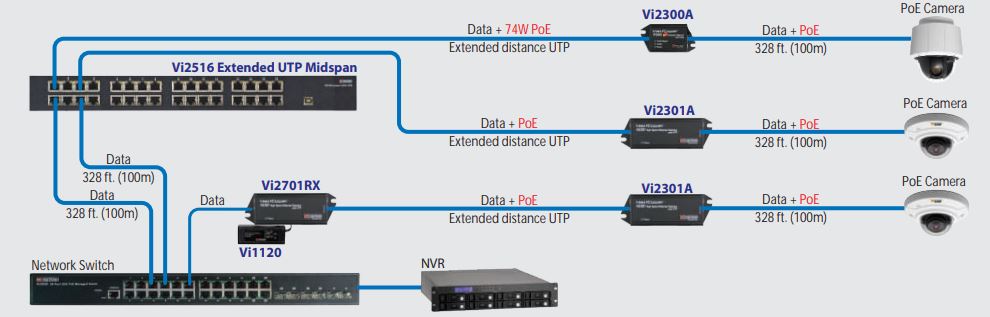

Vigitron Extended UTP PoE Midspans

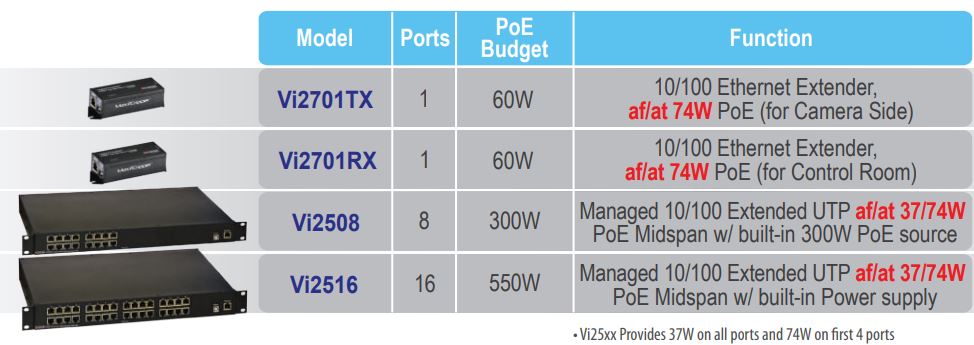

Vigitron provides UTP extenders with built-in PoE midspans.  Midspans are usually defined as a devices that provide Power over Ethernet (PoE). It is placed between a network switch and the device it is powering. Midspans increased the reliability of systems by separating the generation of PoE from a network switch and/or providing extra power not available from network PoE switches.

Vigitron Midspans contain many features not commonly found on other network switches or Midspans.
These features are designed to increase initial connection, maintain and reconnect in the event
connections are lost, and provide status information. A unique client based system eliminates the
potentials for defeating PoE power via hacking attempts. Each port has thermal capacitive fusing for unattended automatic resets. A priority port polling system provides individual port status and allows for customizing the PoE output to meet high power applications.

Vigitron Extended UTP Hybrid PoE Switches

Vigitron manufactures two different models of managed, PoE switches with UTP Extenders built-in to the switch.

The Vi31026 features 8 Extended UTP ports and 16 standard network PoE ports.  The Vi31126 has the opposite specifications with 16 Extended UTP ports and 8 standard network PoE ports.  Both switches have a 550W PoE budget and as all Vigitron switches, automatically reconnect after data or PoE dropped connections.

Vigitron Free, No-Obligation Design Services

Vigitron provides free and no obligation Infrastructure Design Services. Vigitron works closely with virtually all major IP cameras, Access Control systems, LED Lighting and Wireless Transmission manufacturers conducting intraoperative testing and uses the results in perfecting our Design Center Services in providing infrastructure designs for customer applications. Our product performance specifications are supported by extreme environmental, bandwidth and PoE certification testing. Contact Vigitron directly at +1 (858) 484-5209 or for on-line design quote go to https://vigitron.com/design-assistance/
