Simplify Smart Entry with the Yale Pro 2 Family of Bluetooth Locks

Jul 1, 2025 | Access Control, Smart Home

Yale Pro 2 Family of Bluetooth Locks

Cut the Core Drilling: SDC WPT Wireless Power Transfer Device Makes Retrofits Easy

Messing with door cores is one of the biggest headaches for security dealers retrofitting electrified hardware—especially when dealing with wood or fire-rated doors. Fortunately, the SDC WPT Wireless Power Transfer Device solves that problem by delivering power and data across the door gap without any moving parts, wires, or core drilling.

Ideal for both retrofit and new construction, this RF-powered solution simplifies installations, minimizes vandal-prone wiring, and keeps projects on schedule. Whether you’re updating an older access control system or installing electric locks on a wood or steel door, the SDC WPT gives you the power—literally—to get the job done cleanly and compliantly.

Key Product Features

  • Wireless RF power transfer—no door core drilling required
  • Compatible with steel and wood doors
  • Transfers both energy and data (REX, DPS, latch status)
  • Visual LED status indicator
  • Field-selectable dual voltage output (12VDC or 24VDC)
  • Up to 1/4” (7mm) door gap tolerance
  • Flexible mounting on latch, hinge, or top frame
  • No moving parts or exposed wires—zero wear points
  • Adjustable unlock trigger (1–90 seconds)
  • Includes fixed 4-second unlock trigger for standard REX

Use Cases & Dealer Benefits

The WPT is a retrofit-friendly, code-compliant solution designed for:

  • Failsecure Electrified Locks and Latches: Power mortise, cylindrical, or rim locks without wiring hassles.
  • High-Traffic Doors: Reduce wear and tear from wire loops and moving parts.
  • Historic and Finished Doors: Maintain door aesthetics without compromising functionality.
  • Healthcare and Schools: Perfect for touchless entry installations using wave-to-open sensors.
  • Compliance Upgrades: Ideal for projects needing to meet UL fire and burglary ratings.

Why Dealers Love It:

  • No Core Drilling = Faster Installs: Save labor and avoid damaging fire-rated or wood doors.
  • Reduced Callbacks: No wires to break or degrade over time.
  • More Tolerant Alignment: Easier to install than inductive wireless devices.
  • Upsell Opportunity: Bundle with electrified locksets, exit devices, and wave-to-open switches.
  • Profitable Retrofits: Unlock more margin on existing door openings where wiring is difficult.

Technical Summary

  • Power Input (Frame Side): 600 mA @ 24 VDC
  • Power Output (Door Side):
    • 600 mA @ 12 VDC
    • 300 mA @ 24 VDC
  • Door Gap Tolerance: Up to 1/4″ (7mm)
  • Alignment Tolerance: Horizontal & vertical < 5/64” (2mm)
  • Dry Inputs:
    • (1) 4-second fixed unlock trigger
    • (1) 1–90 second adjustable unlock timer
  • Dry Outputs (Frame Side):
    • (2) SPDT, 1A @ 30 VDC resistive
    • (2) SPST-NO, 100 mA @ 60 VDC resistive
  • Environmental Rating: -4°F to 140°F
  • Weight: 1 lb
  • Certifications:
    • UL 10C Positive Pressure Fire Tests
    • UL 1034 Burglary-Resistant Locking Mechanisms

Note: For use with failsecure (power-to-unlock) locks only. Not compatible with failsafe or continuously dogged locks.

How the SDC WPT Works

Unlike inductive systems that require precise coil alignment, the WPT uses RF energy, which:

  • Transmits power as radio waves across the door gap.
  • Converts the RF signal into usable DC voltage via an internal receiver.
  • Transfers data (REX, DPS, latch status) along with power.
  • Is less sensitive to vertical and horizontal misalignment than coil-based systems.

This makes the WPT more installer-friendly and reliable in real-world deployments—especially in field conditions where perfect alignment isn’t always possible.

Accessory Highlight: WPT Drill Jig

For installers working with solid or particle-filled wood doors, SDC offers a WPT Drill Jig Assembly (part #SDC-WPT), available from JustDoorToolz. This makes prep quick, clean, and precise—ensuring a secure, code-compliant fit for every install.

Partner with SESP for Your SDC Installations
Southeast Security Products represents SDC and other best-in-class manufacturers across the Southeast U.S., offering hands-on support, product expertise, and dealer-focused programs to help you grow your business. Whether you’re building your first smart home package, upgrading to next-gen connectivity, or integrating high-performance technology into a larger security system, we can help you select the right solutions to power your installations. Contact us today for pricing, training, or to request a demo of the WPT Wireless Power Transfer Device.

Visit sesproducts.com or reach out to learn more about how we can support your next project.

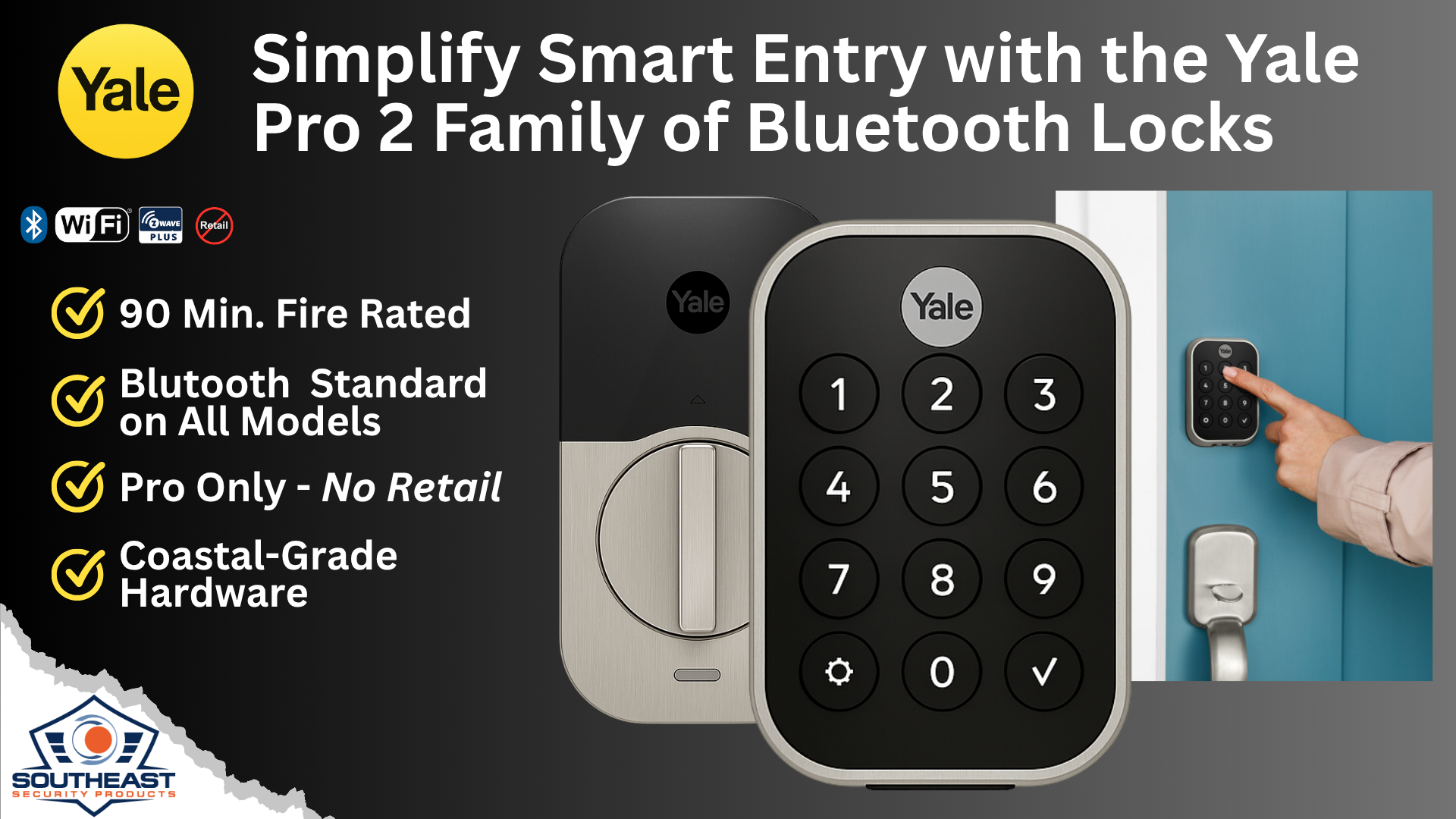

Today’s homeowners expect more than just security — they want simplicity, flexibility, and control. That’s where the Yale Pro 2 Family of Bluetooth Locks comes in. With over 180 years of trusted security expertise, Yale brings modern convenience to residential and multifamily access control with a feature-rich lineup of smart locks that eliminate keys and elevate user experience.

For security dealers and low-voltage integrators, the Yale Pro 2 line offers an easy-to-install, high-demand solution that fits the smart home trend perfectly. Whether your customer prefers a touchscreen, keypad, or key-free experience, there’s a Yale Pro 2 model that delivers secure, scalable access — no professional installer required.

Key Product Features

  • Auto-Unlock via Bluetooth — Unlocks automatically as the user approaches

  • Keypad and Touchscreen Options — Choose from 4 models based on user preference

  • Yale Access App Integration — Easily manage codes, lock settings, and access history

  • Apple Watch Compatibility — Unlock the door with a tap on your wrist

  • Auto-Lock with DoorSense® — Lock status monitoring for added peace of mind

  • Commercial Grade 2 Certified — ANSI/BHMA certified with advanced encryption

  • Battery Back-Up — Power the lock with a 9V battery if standard batteries die

  • Custom Settings — Configure privacy mode, tamper alerts, and relock timing

  • Smart Module Slot — Easily upgrade to Wi-Fi or Z-Wave compatibility

  • DIY-Friendly Installation — Fits standard U.S. and Canadian doors using only a screwdriver

Use Cases and Dealer Benefits

Yale Pro 2 locks are designed for homeowners, property managers, and rental operators who want smart, secure access without overcomplicating the installation or maintenance process. Here’s why these locks are a solid opportunity for dealers:

  1. Residential Smart Home Upgrades — Offer key-free convenience to tech-savvy homeowners and renters looking to integrate locks with voice assistants or mobile apps.
  2. Multifamily & Rental Properties — Remotely manage access codes for tenants, service providers, and guests with audit trails and scheduling features.
  3. Dealer-Friendly Retrofits — Replace existing deadbolts on most standard doors without additional wiring, drilling, or specialized tools.
  4. High Margin with Low Complexity — With no hardwiring and app-based setup, Yale Pro 2 installs quickly — saving labor while adding profitability.
  5. Upsell Smart Modules — Expand your revenue with optional Yale Smart Modules (Wi-Fi or Z-Wave) that enhance system integration with alarm panels or smart home ecosystems.

Technical Summary

  • Models Available:

    • YRD614: Keypad Lock

    • YRD624: Touchscreen Lock

    • YRD634: Key-Free Keypad Lock

    • YRD654: Key-Free Touchscreen Lock

  • Connectivity:

    • Built-in Bluetooth for app and Auto-Unlock

    • Compatible with Yale Smart Modules (sold separately) for Wi-Fi or Z-Wave

  • Certifications:

    • ANSI/BHMA Grade 2

    • IPX5 Rated

    • 90-minute fire-rated

  • Operating Temperatures:

    • Exterior: -22°F to 140°F

    • Interior: 5°F to 158°F

    • Battery range: 14°F to 131°F

  • Power:

    • 4x AA Batteries (included)

    • 9V Battery Back-Up (key-free models)

  • Dimensions:

    • YRD614 / YRD624: 2.6″ W x 4.9″ H (exterior), 2.7″ W x 4.9″ H (interior)

    • YRD634 / YRD654: 2.5″ W x 3.7″ H (exterior), 2.7″ W x 4.9″ H (interior)

  • Door Compatibility:

    • Face Bore: 2 1/8″ or 1 1/2″

    • Edge Bore: 1″

    • Backset: 2 3/8″ or 2 3/4″ (adjustable)

    • Door Thickness: 1 3/8″ – 2 1/4″

  • Finishes:

    • Satin Nickel (619), Black Suede (BSP), Oil Rubbed Bronze (0BP), Lifetime Brass (P05)

  • Included in Box:

    • Yale Pro 2 lock

    • DoorSense sensor

    • Deadbolt and strike plate

    • Mounting hardware

    • 4 AA batteries

    • Installation template and manual

    • Physical key (for keyed models)

  • Optional Accessories:

    • Yale Wi-Fi or Z-Wave Smart Module

Partner with SESP for Your Yale Installations

Southeast Security Products represents Yale and other best-in-class manufacturers across the Southeast U.S., offering hands-on support, product expertise, and dealer-focused programs to help you grow your business. Whether you’re building your first smart home package, upgrading to next-gen connectivity, or integrating high-performance technology into a larger security system, we can help you select the right solutions to power your installations. Contact us today for pricing, training, or to request a demo of the Yale Pro 2 Family of Bluetooth Locks.

Visit sesproducts.com or reach out to learn more about how we can support your next project.
